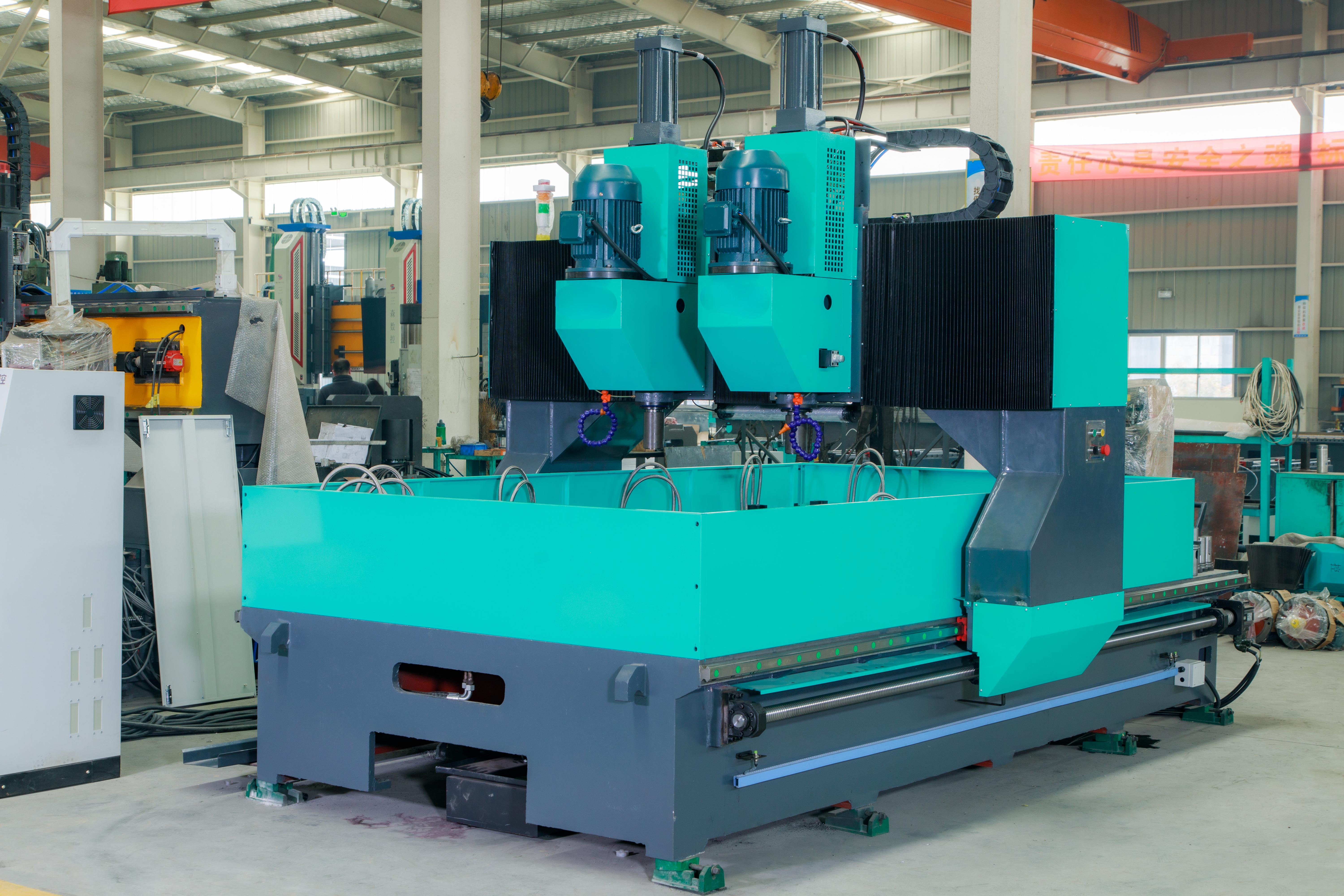

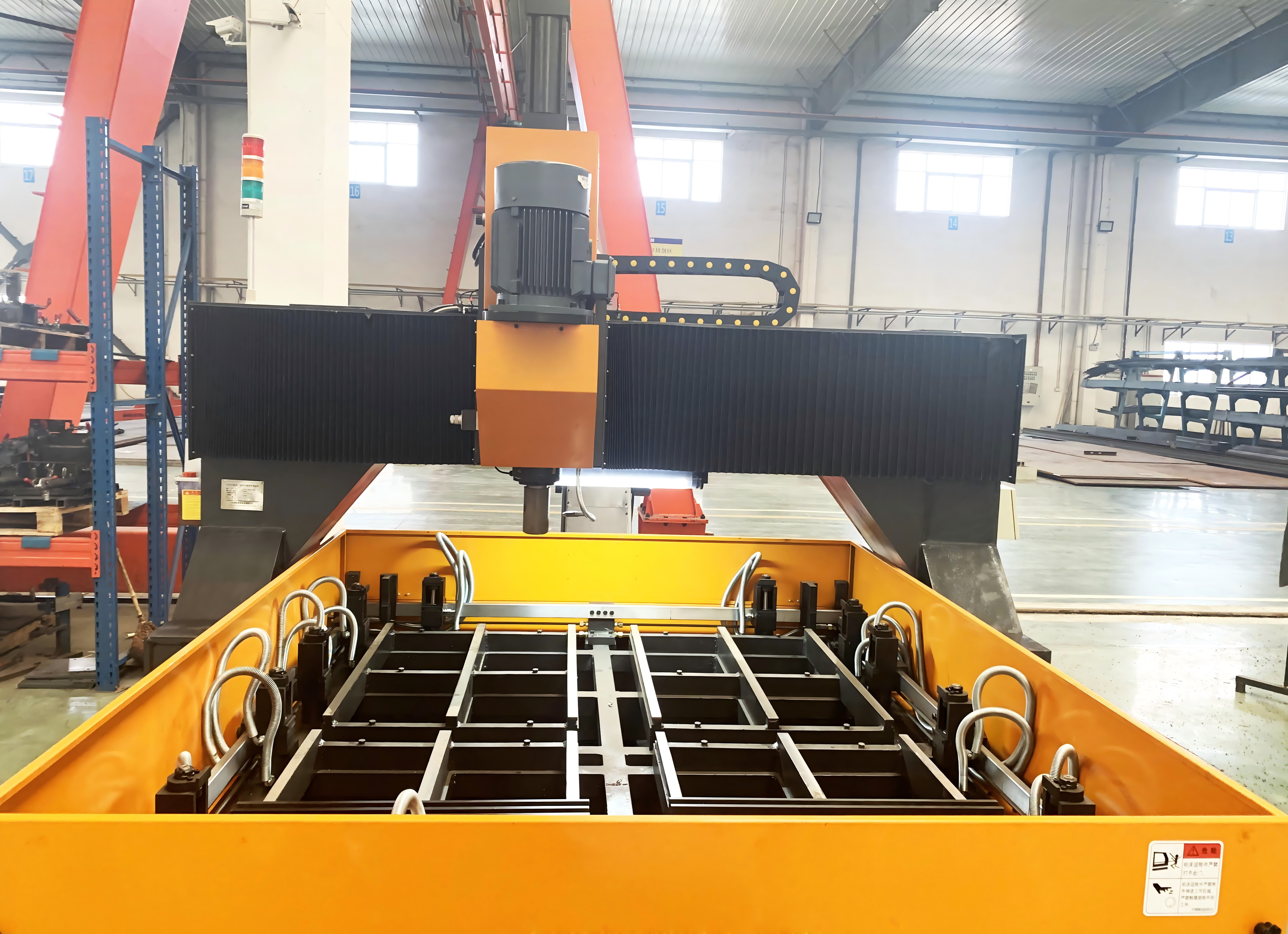

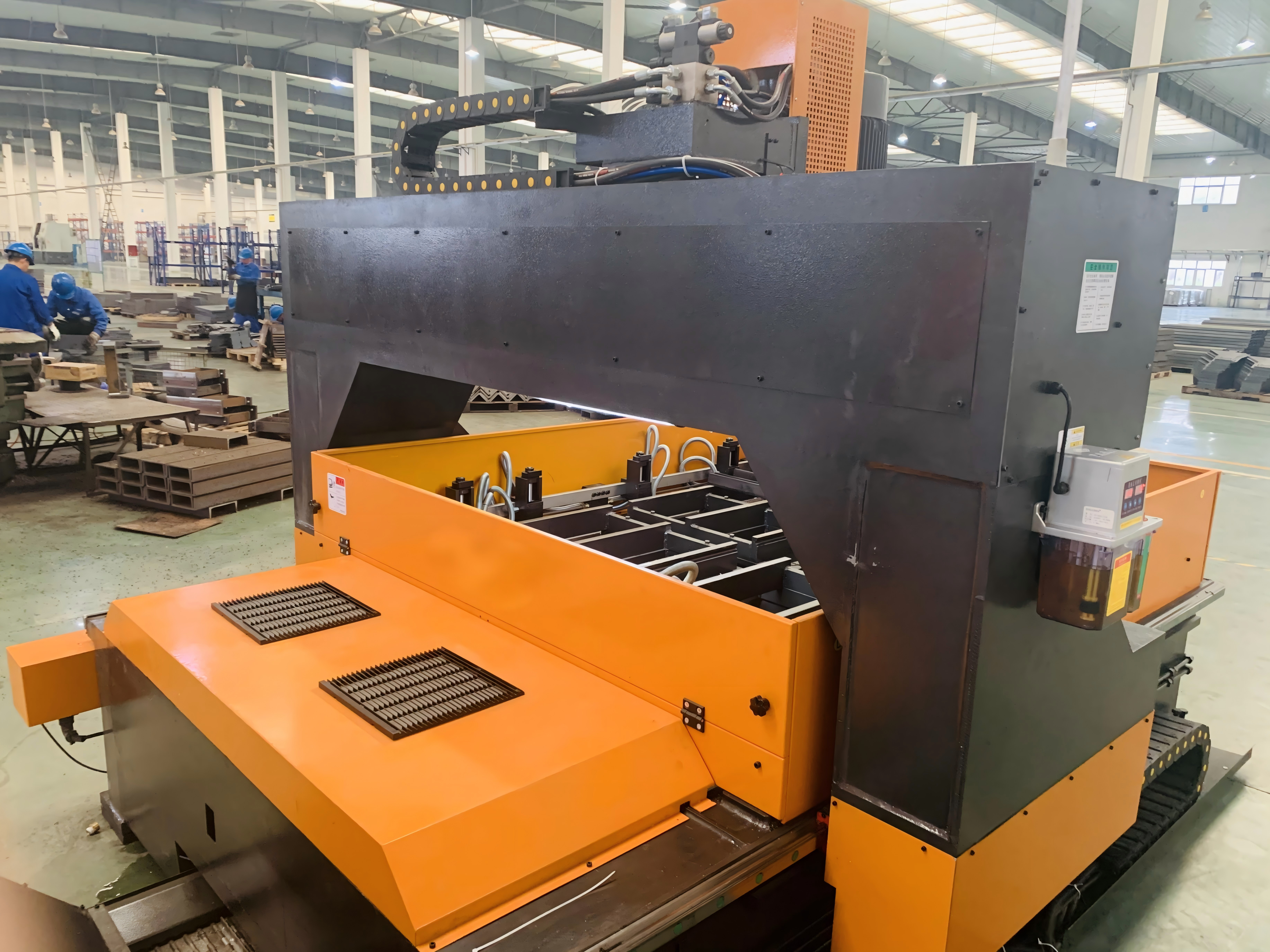

CNC Drilling Machine For Steel Plates (Normal Speed)
Model: YK-PD2012/ YK-PD2016/ YK-PD3016/ YK-PD4016/ YK-PD2020-2
This is special CNC machine for drilling plates and flanges, mainly used in steel structure, tower, bridge and other industries.
This is special CNC machine for drilling plates and flanges, mainly used in steel structure, tower, bridge and other industries.
Product Parameters
1.Introduction for CNC Drilling Machine For Steel Plates (Normal Speed)
Model: YK-PD2012/ YK-PD2016/ YK-PD3016/ YK-PD4016/ YK-PD2020-2
This is special CNC machine for drilling plates and flanges, mainly used in steel structure, tower, bridge and other industries.
2.Technical parameter for CNC Drilling Machine For Steel Plates (Normal Speed):
3.Characters for CNC Drilling Machine For Steel Plates (Normal Speed):
1. Machine is controlled by PLC & servo motor, ensure precision positioning .

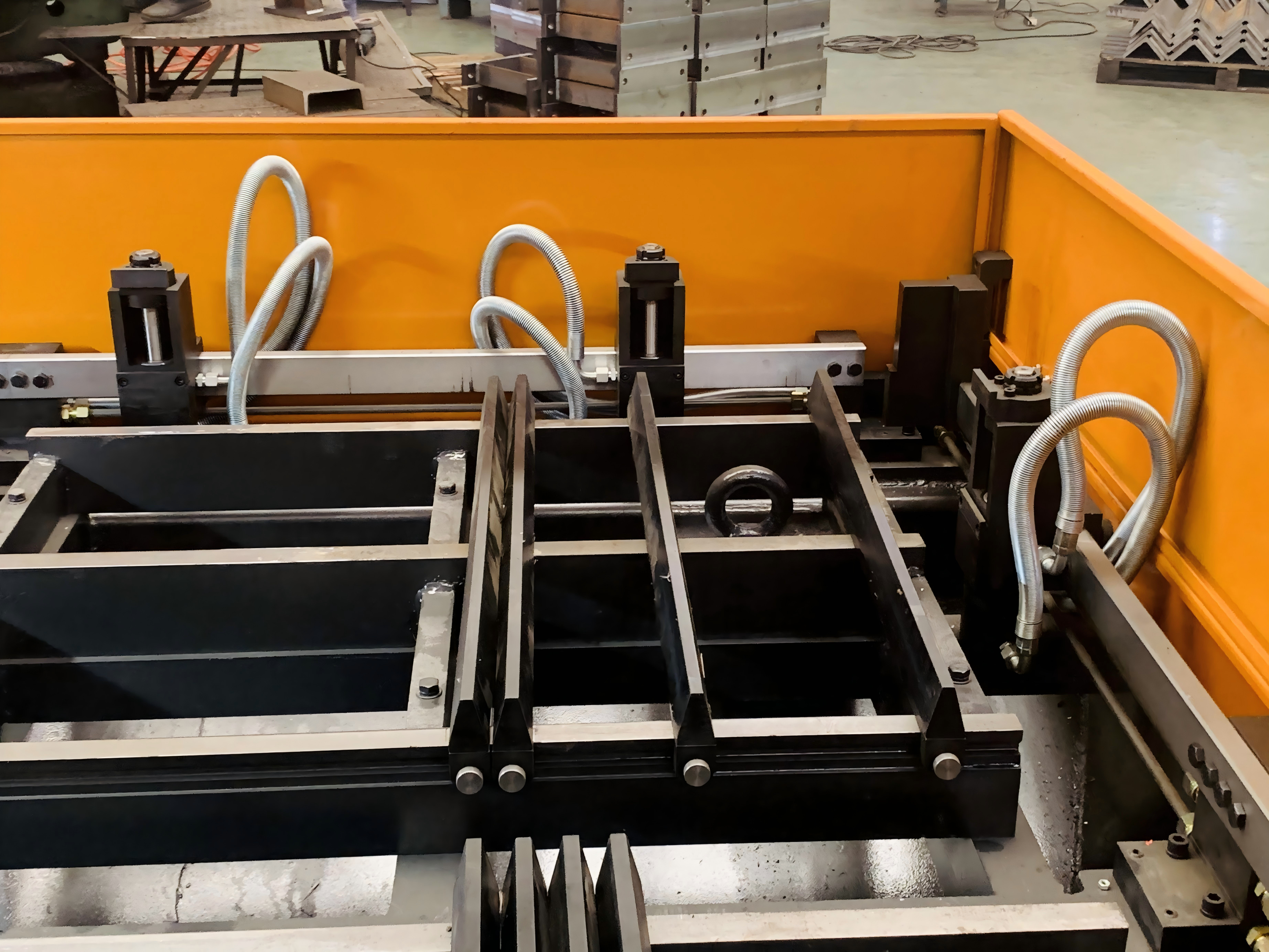

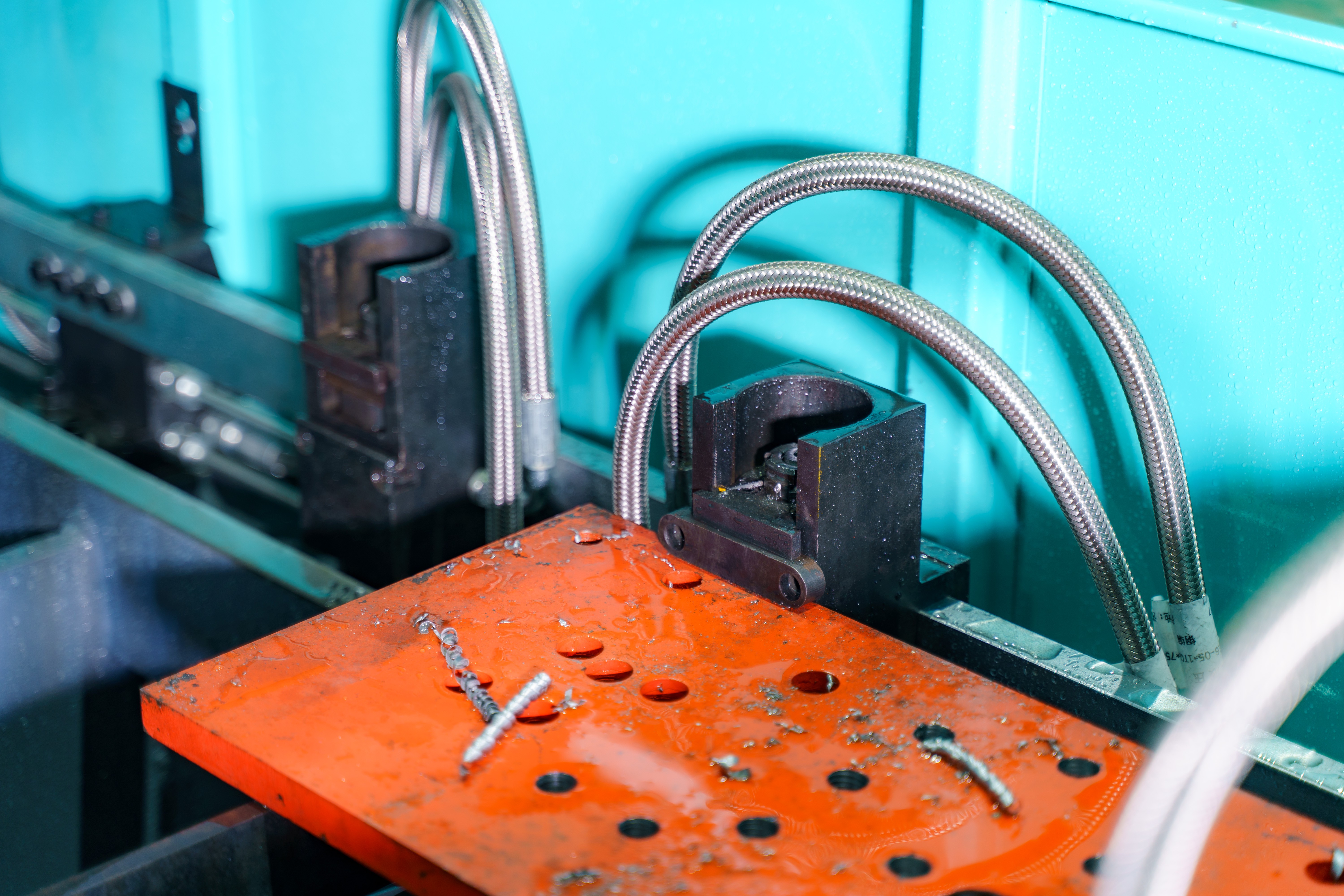

2. The machine have 4 work area with individual reference, workpieces can be clamped by hydraulic clamps at any area for drilling.
3. Machine equips with computer for software, it can use Auto CAD drawing directly, it also can process NC file which generated by TEKLA.

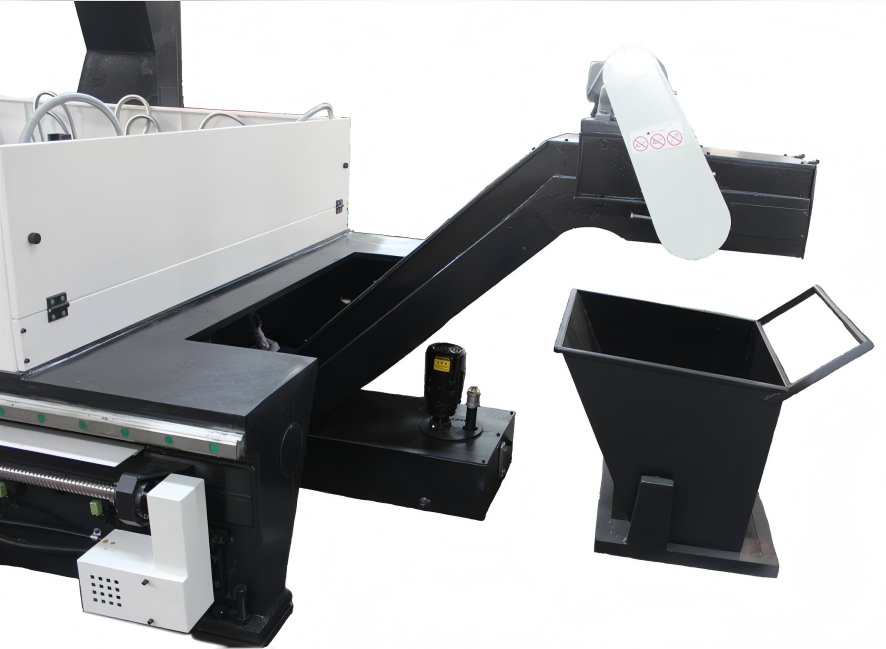

4. Scrap cleaner can collect iron scraps and cutting liquid which is recycling.
5. The key mechanical, hydraulic and electric parts are all famous brands.
6. Optimized integration design for complete machine, no foundation requirements.
