High Speed CNC Drilling And Milling Machine For Steel Plates/ Flanges/ Tube Sheets
2.This machine is a gantry mobile CNC high-speed drilling and milling machine. It is mainly used for drilling, tapping and milling of workpieces such as steel plates, flanges, heat exchangers, tube sheets, and slewing supports. Carbide drills can be used for high-speed drilling with internal cooling. This machine is equipped with KND or Siemens CNC system bus control, convenient operation, can achieve automation, high -precision, multi -variety, small and medium -sized production.
Product Parameters
1.Introduction for High Speed CNC Drilling And Milling Machine For Steel Plates/ Flanges/ Tube Sheets

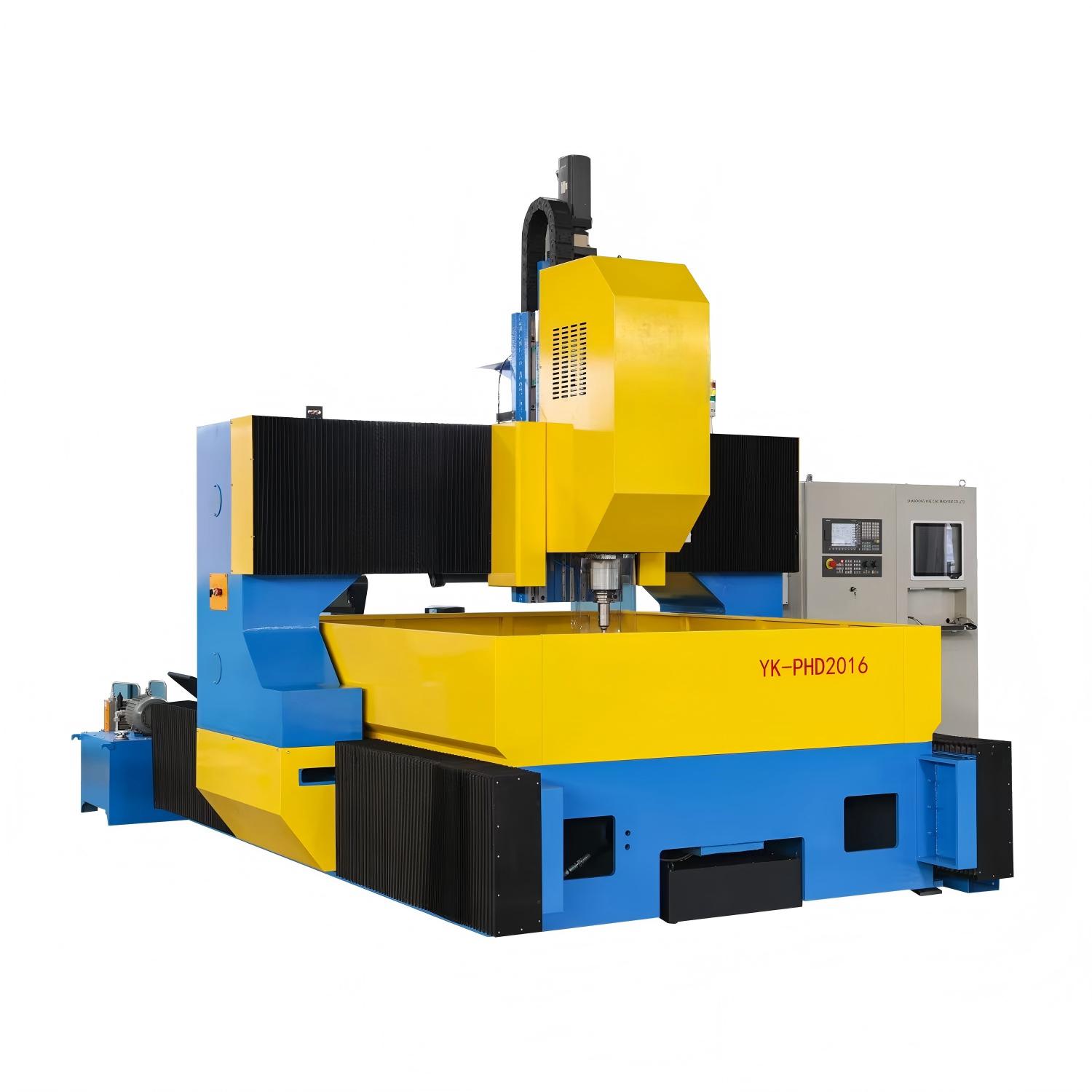

Model:YK-PHD1010/ YK-PHD1616/ YK-PHD2016/ YK-PHD3016/ YK-PHD4016
This machine is a gantry mobile CNC high-speed drilling and milling machine. It is mainly used for drilling, tapping and milling of workpieces such as steel plates, flanges, heat exchangers, tube sheets, and slewing supports. Carbide drills can be used for high-speed drilling with internal cooling. This machine is equipped with KND or Siemens CNC system bus control, convenient operation, can achieve automation, high -precision, multi -variety, small and medium -sized production.
2.Technical parameter for High Speed CNC Drilling And Milling Machine For Steel Plates/ Flanges/ Tube Sheets:
3.Characters for High Speed CNC Drilling And Milling Machine For Steel Plates/ Flanges/ Tube Sheets:
3.1 This machine aims to drilling holes on the metal plate of building steel structure, power iron tower and petrochemical equipment. It adopts gantry type structure. The axis X, Y and Z are drove by servo motor through precise ball guide screw. It positions automatically, precisely and quickly and finishes the processing of drilling automatically.
3.2 The control system of this machine adopts KND or SIEMENS control system, which is easy for new operator even without rich experiences.

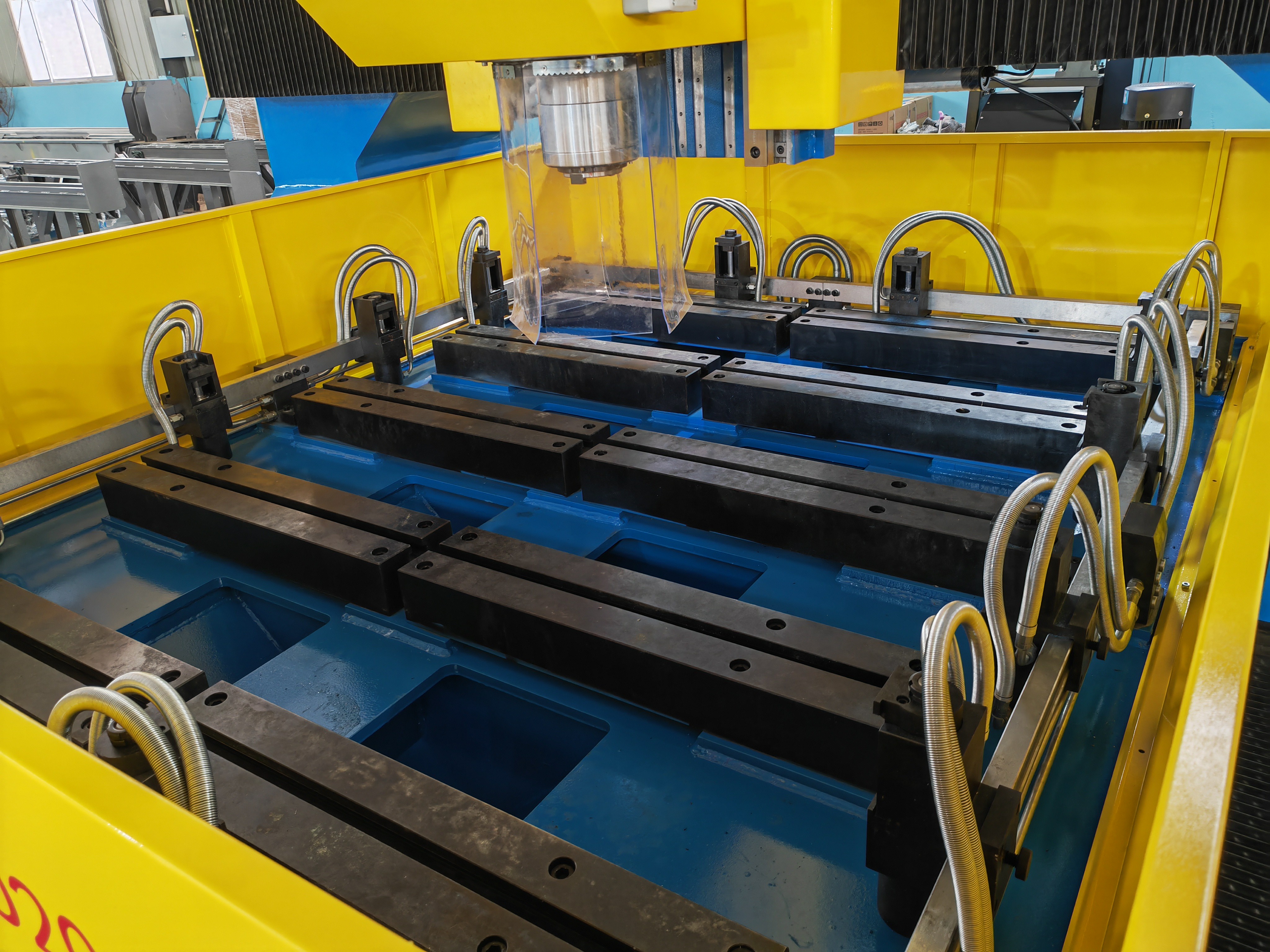

3.3 Automatic chip removal and circulation cooling system reduce the nonproductive time and labor intensity. The operator only need to load and unload work piece and change the drills.

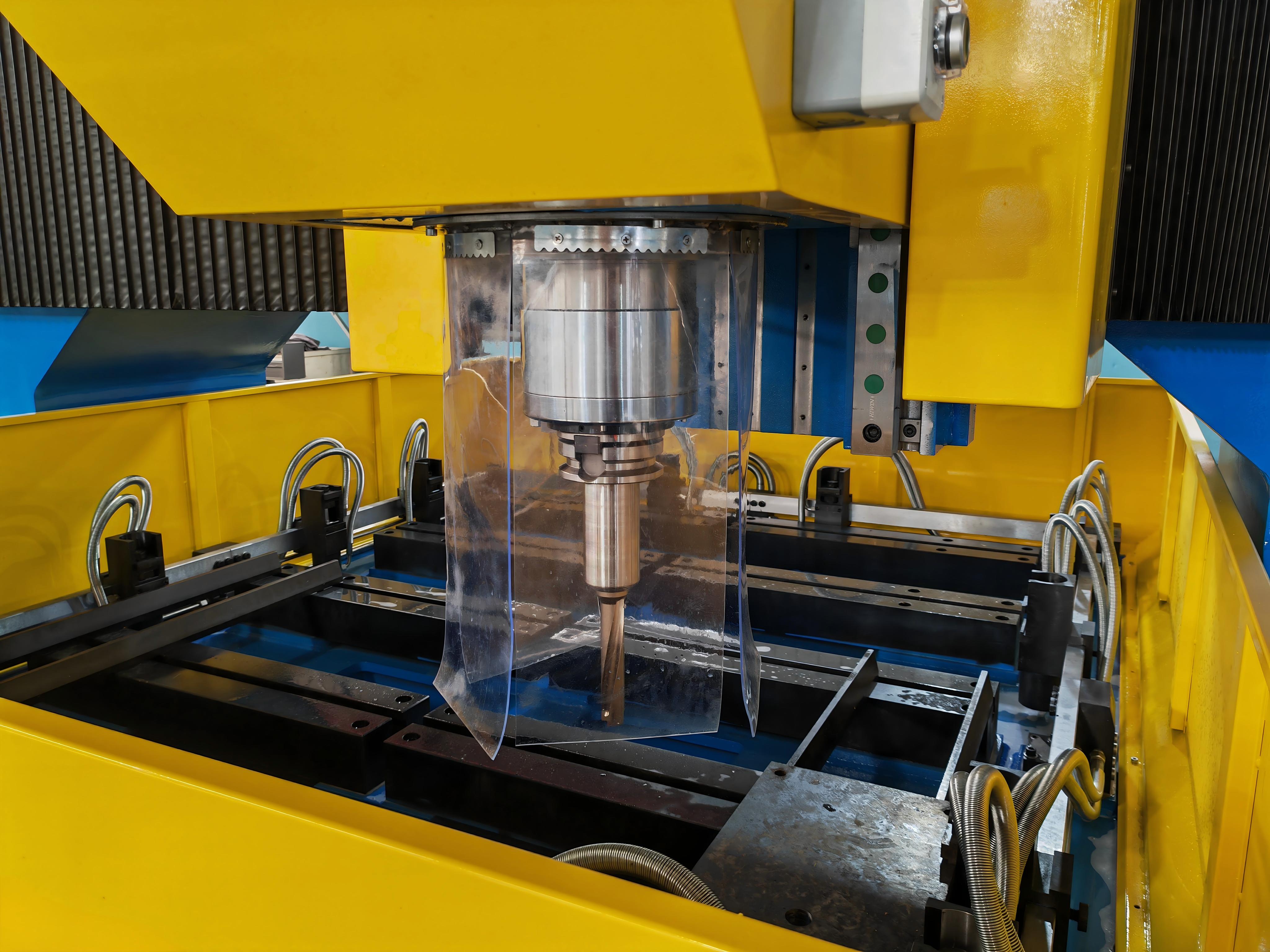

3.4 Machine use Taiwan BT40/BT50 spindle, internal cooling type, high accuracy spindle. It can use carbide drill. Machine also adopts pneumatic tools cylinder, to make tools change more easier. The big power main spindle motor is driven by servo synchronization belt. This is can bear big scope of rotation speed.
3.5 This CNC drilling machine is designed according to the workpiece features and precision requirements; it has compact form and is flexible, it meets the processing requirements better. No matter the holes are arranged as circle or straight line, it can finish the work quickly and accurately. Therefore, this machine is cost-effective choice.
